MOTOR REPLACMENT PROCEDURE

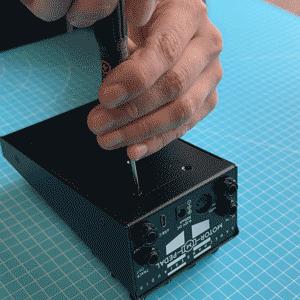

• Place your Motor Pedal on a table, face down. Remove the motor bonnet by unscrewing the three screws at the back of the pedal.

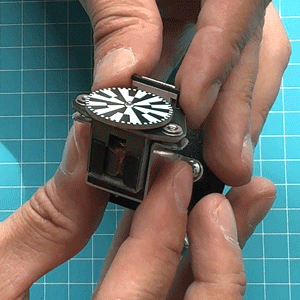

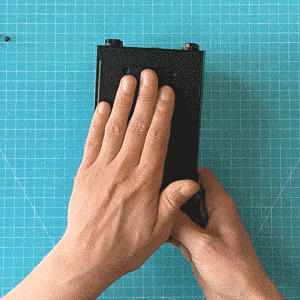

• When the screws are unscrewed, slowly turn the pedal to the side while supporting the motor bonnet with your fingers. The motor brace should fall into your hand, at which point you can carefully pull it out of the pedal and place it on the back of it.

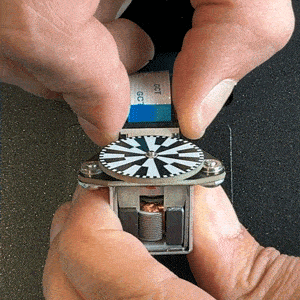

• Turn the pedal around so that the ribbon cable connecting the motor to the pedal is facing you. Hold down on the motor brace and carefully unclip the ribbon cable connection, and remove the ribbon cable.

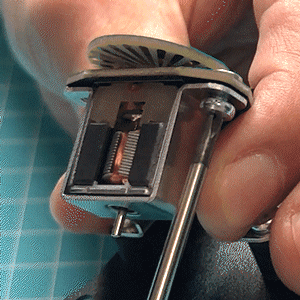

• By firmly holding the motor brace, unscrew the two screws holding the motor.

• Remove the old motor from the brace.

• Insert the new one in its place.

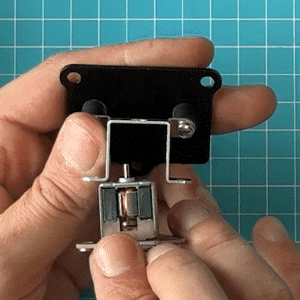

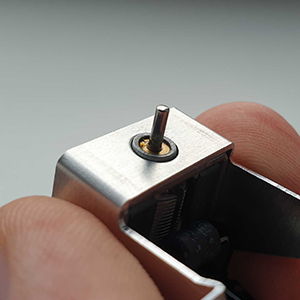

• Make sure that the round part at the back of the motor goes through the hole at the back of the motor brace.

• Screw back the screws holding the motor into the brace.

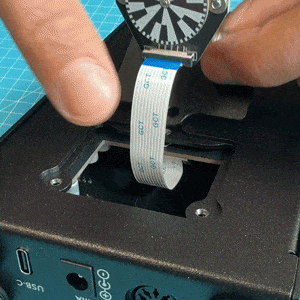

• Place the motor on the back of the pedal. Undo the ribbon cable clip and place the ribbon cable into the connector so that the blue side of the cable is facing up. Close the ribbon cable clip.

• Insert the motor back into the pedal.

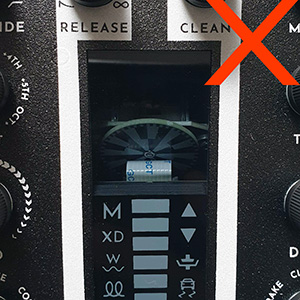

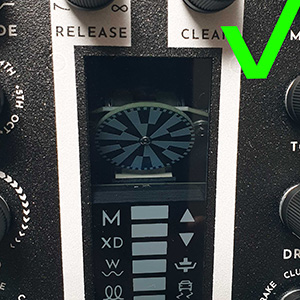

• Make sure the ribbon cable is not in front of the motor.

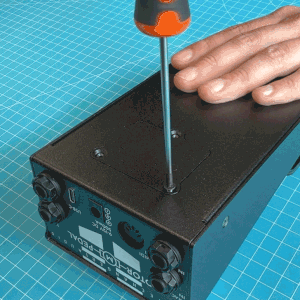

• Screw back the motor bonnet.

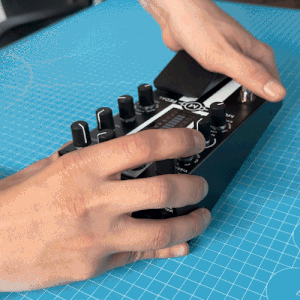

• Now the new motor needs to be calibrated. Power on the pedal while holding down both the footswitch and the built-in expression pedal. The Led bar will start to fill up yellow indicating that the pedal calibration is starting.

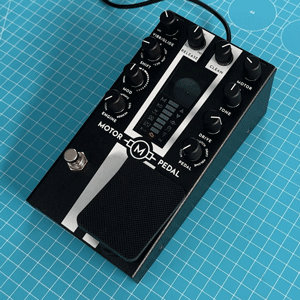

• If the LED bar turns blue, that means the calibration process has started. Now the footswitch and pedal can be released. This process can take up to 25minutes.

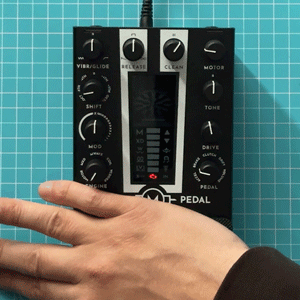

• If the LED bar flashes red and the engine light is blinking, that means there's an error and you should check if the motor swap steps were executed correctly or contact our customer support.

• Once the motor calibration process has finished, connect your Motor Pedal to a computer using USB-C cable. Once connected, click the button below in order to reset the motor revolution counter.
  Reset Pedal Data

  Perform this operation ONLY if you have just swapped the motor of the Motor Pedal. If you perform this operation on a used motor the check engine indicator light on the pedal might display wrong information.
