Eurorack module

for HIGH VOLTAGE ROCK AND ROLL

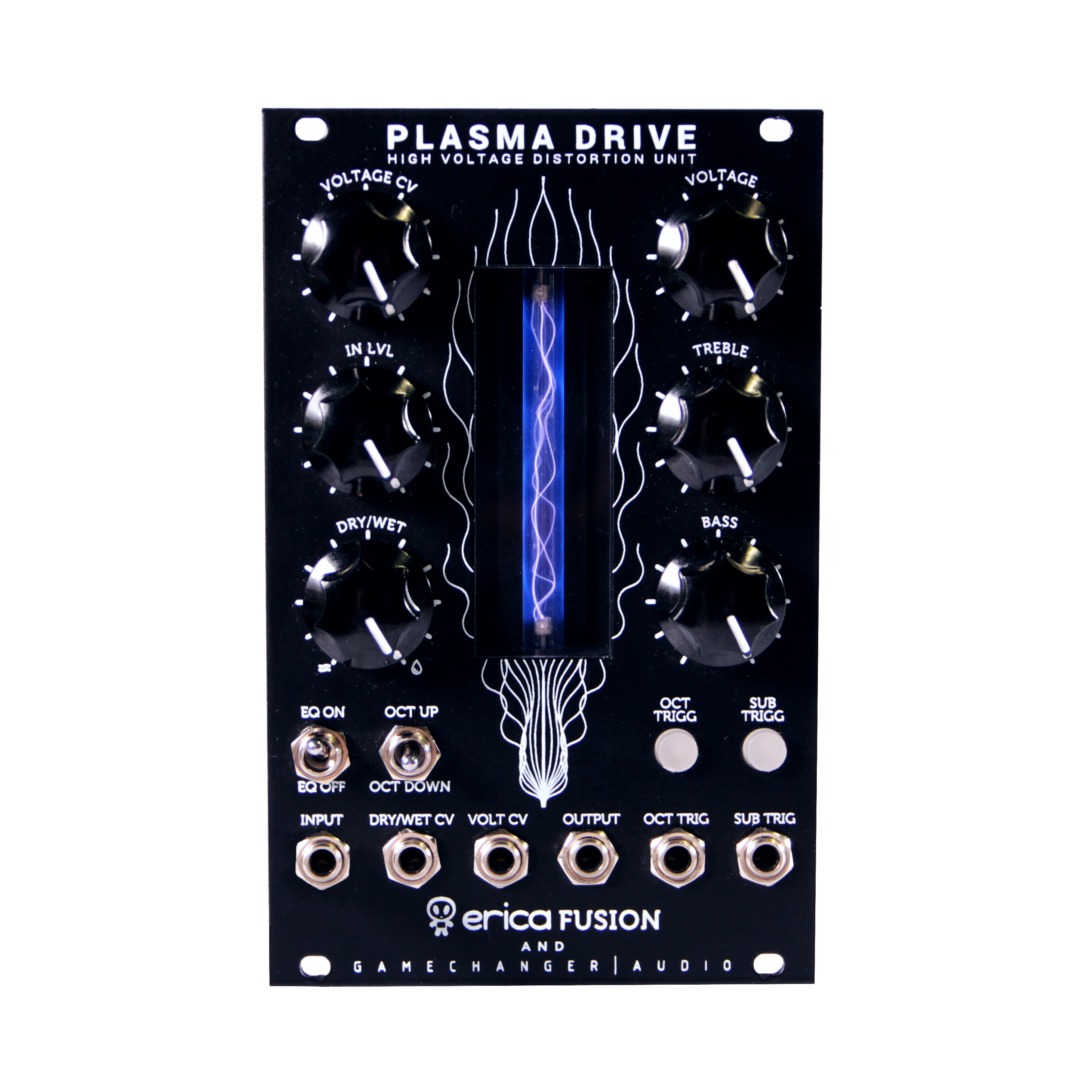

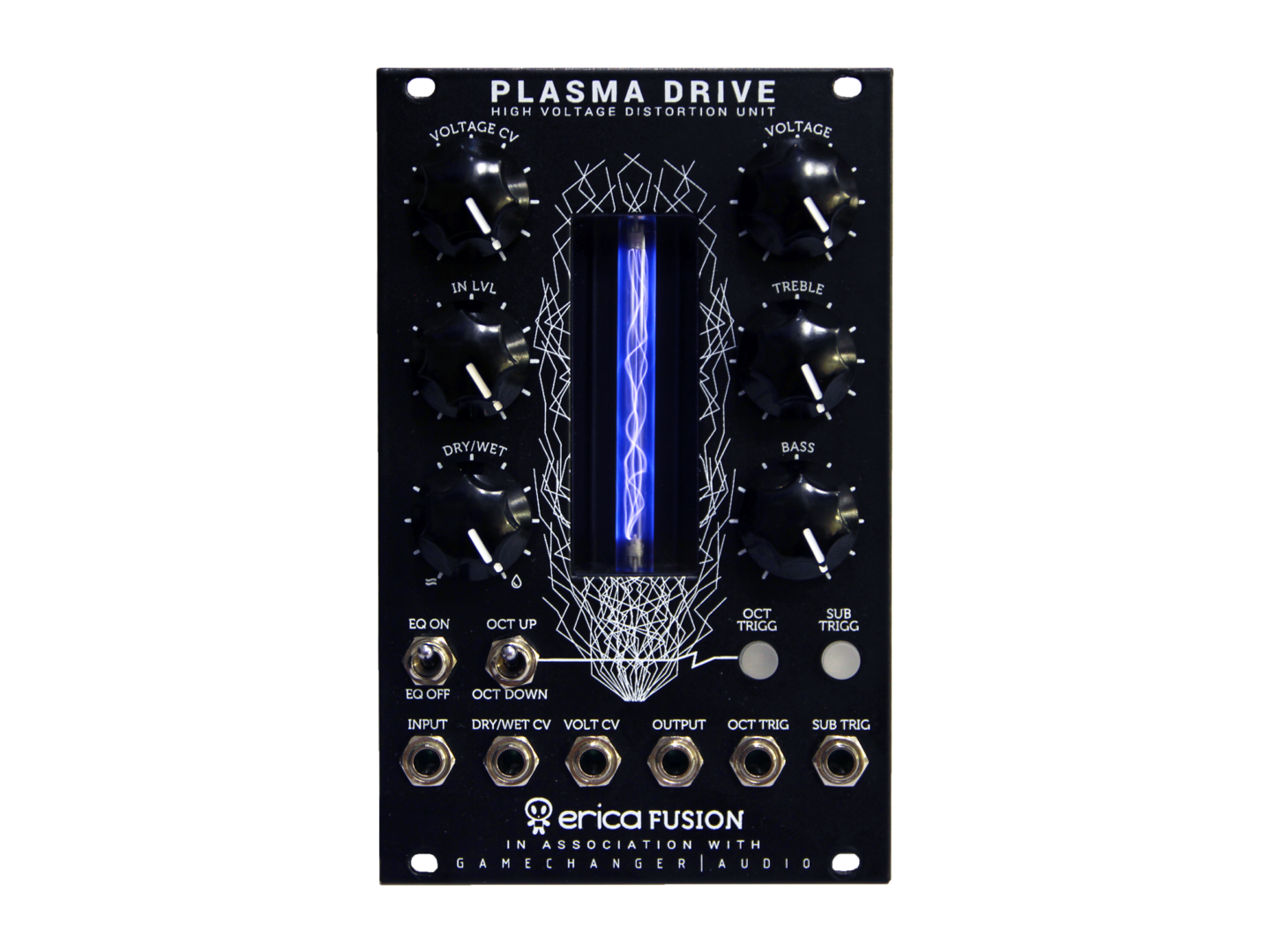

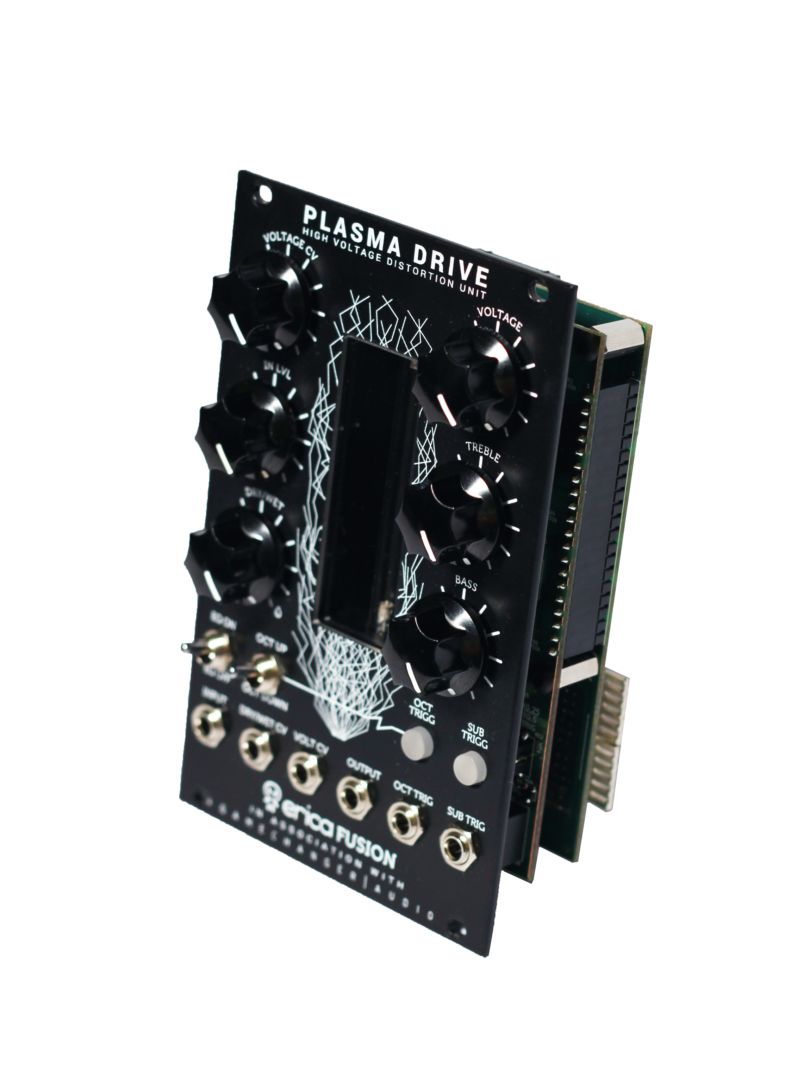

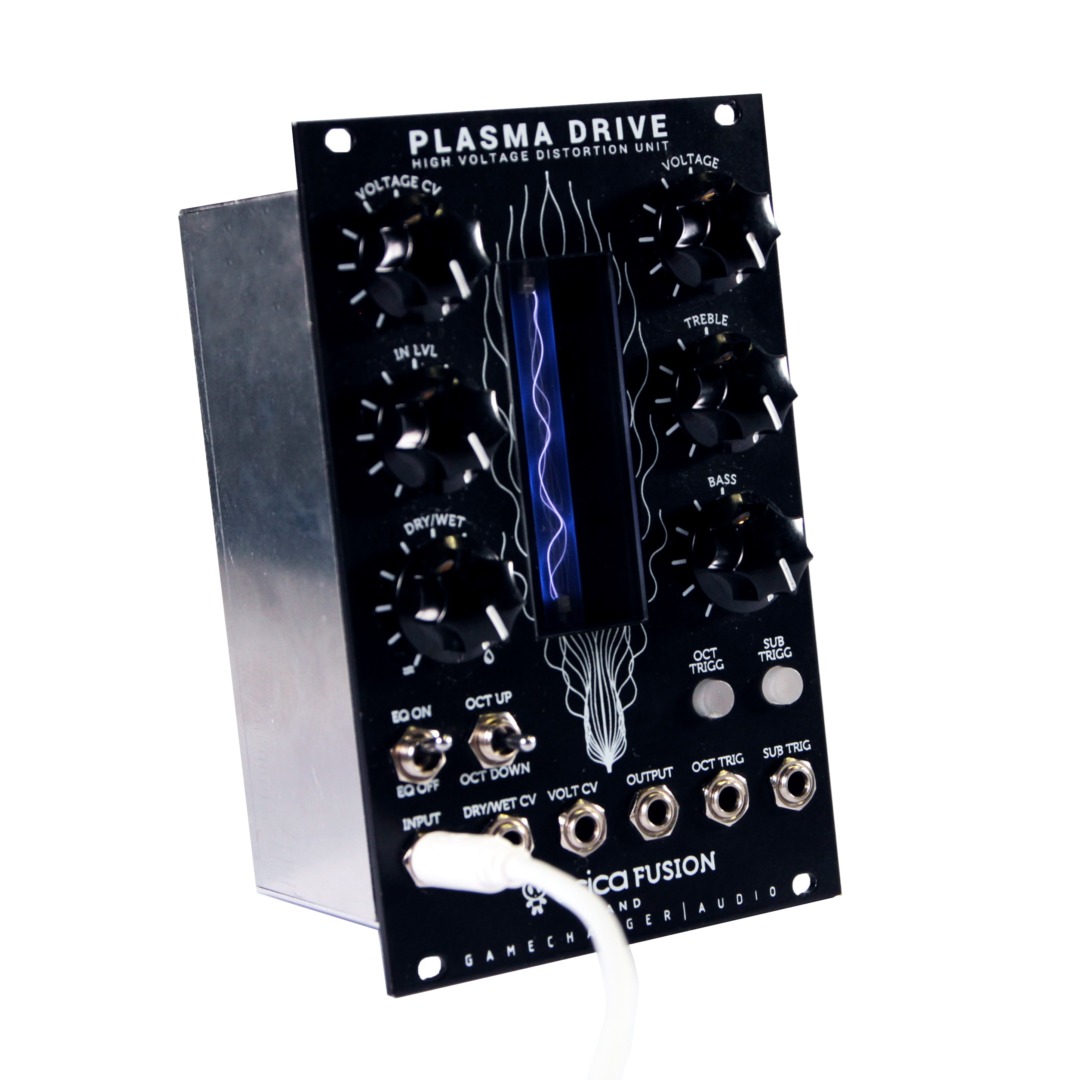

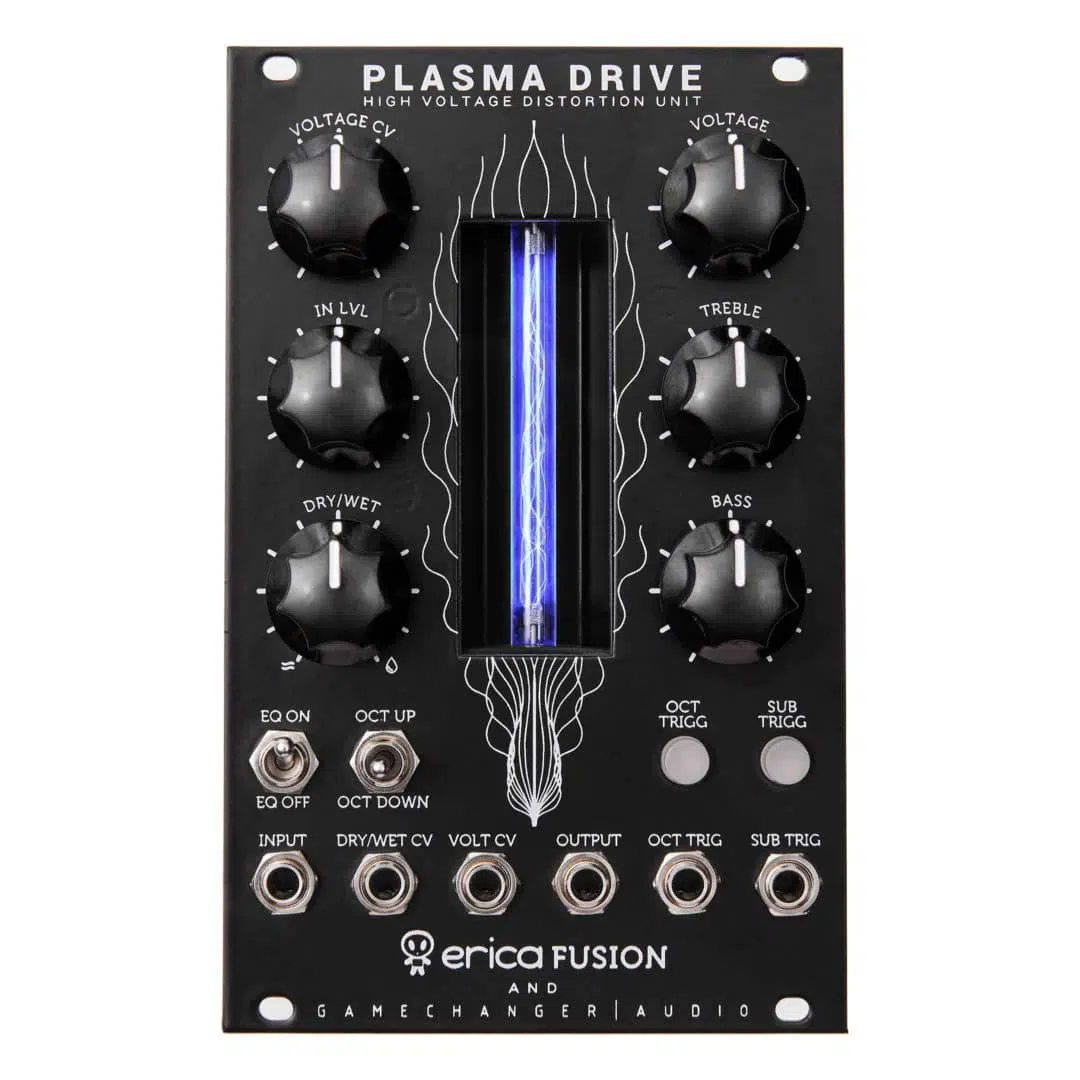

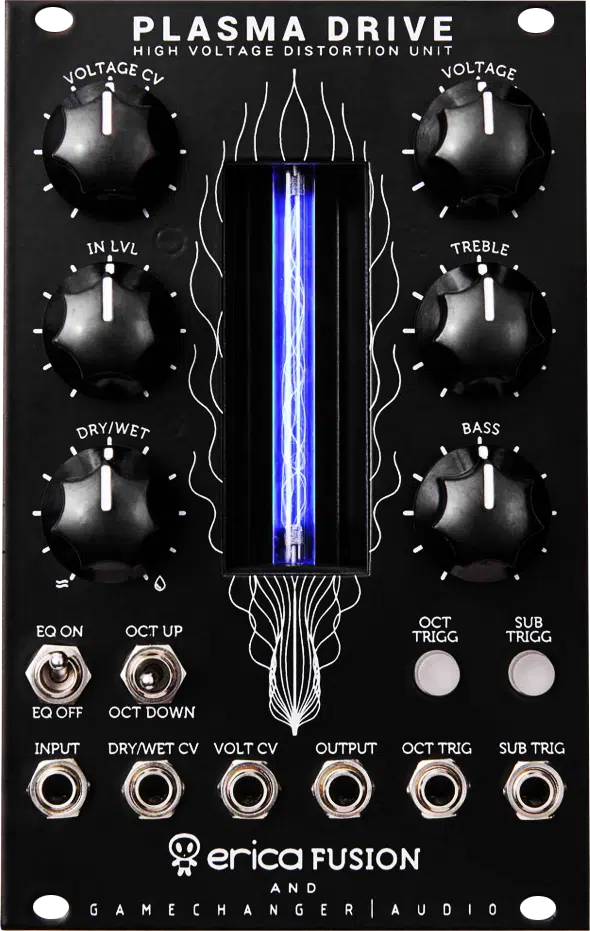

PLASMA eurorack module “PLASMA Drive” is a collaboration between Gamechanger Audio and Erica Synths, an established and recognized modular synthesizer brand from Latvia. Erica Synths are a team of visionaries, engineers and musicians who create modules and instruments that are different in terms of sound, looks and functions.

Similar to PLASMA Pedal, the PLASMA Eurorack Drive boosts audio signal to 3000V and transforms it into a series of continuous high-voltage discharges in a xenon-filled tube. In essence – you are playing a lightning bolt of electricity, and the electrical discharges produced by your instrument are instantly converted back into an analogue audio signal. The result – a quick, responsive, and extremely heavy distortion with tons of unique character!

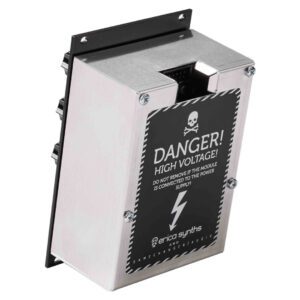

The PLASMA Drive Eurorack Module brings the sounds of the PLASMA Pedal to the modular world. The functions of the pedal are complemented with CV control over the level of distortion and a dry/wet mix. The Module introduces tracking oscillators for a new Octave Up & Two-Octave Down function, thus adding even more harmonics to the original signal. Tracking oscillators can be switched on/off manually or via trigger signals. The PLASMA Drive module is powered with conventional eurorack PSU ribbon cable and the power consumption is around 250mA.

Features:
-Unique distortion
-CV control over distortion and dry/wet mix
-Assignable equalizer (pre- and post- effect)
-1 Octave up and 2 Octave down tracking oscillators





Technical Specification



Audio input level up to 20V ptp
EQ low freq boost/cut ±9dB, 600Hz corner freq.
EQ hi freq boost/cut ±10dB, 1.5kHz corner freq.
CV input level -10V – +10V
Panel width 16HP
Module depth 50 mm
Peak power consumption 200mA@+12V,
100mA@-12V



Download User’s Manual here





What people say:

The weather is hot, already. And also, the summer vacation season has come in South-Korea. Can I go to beach on this summer, even if there’s many projects now? Let’s be positive, guys!🤞 Enjoy it & have a cool weekend😎🎛🖤
-
요즘 너무 더워서 바닷가에 가보고 싶습ㄴ...🙇‍♂️🌴☀️
-
-
#modalelectronics #modalelectronicscraft20 #Moog #dfam #ericasynths #plasmadrive #retromechanicallabs #drummachine #synth #eurorack #modularsynth #techno #acidtechno #darktechno #minimaltechno #deeptechno #hardtechno #techhouse #undergroundtechno #underground #electronic #dance #music #liveset #livejam #ANSR #seoul #gearlounge
...

643 25

Yes, it’s Monday! New week started, again. How was last weekend, guys? I just have slept well for a long time. Haha! And I checked few messages on Instagram. I couldn’t reply all messages(good words for my jam, label contact, questions about jam & etc.), but really thanks for that!🙏 If I’m ready, I’ll post here about some answers. Stay tuned! Ok, let’s go to new week. Enjoy it & have a nice week, guys!😎🎛🖤
-
어제까지 업무처리하고나서 기절(?)해서 푹 잠✌️ 드디어 날씨도 따뜻해졌으니, 신나는 일주일 되세요~!🙌
-
#moog #dfam #mother32 #makenoise #morphagene #ericasynths #plasmadrive #pico #picoseq #picodsp #synth #drummachine #eurorack #modularsynth #techno #acidtechno #darktechno #minimaltechno #deeptechno #hardtechno #techhouse #undergroundtechno #underground #electronic #dance #music #liveset #livejam #ANSR #seoul
...

349 13

Breaking in some new toys in this jam - wmdevices Fracture and Crucible paired with the noiseeng BIA thru ericasynths Plasma Drive 😱 Have a nice little percussion set up now and I'm excited to see where it goes 😋
.
One of my favorite tricks with mutableinstruments Marbles is CVing the clock division against a constant clock. Endless little groove variations across the whole module 🤯
.
.
#modular #modularsynth #eurorack #eurorackmodular #synth #synthesizer #synthporn #synthpatcher synthpatchers #instrumentalhiphop #hiphopproducer #electronicmusic #electronicmusicproducer #liveelectronicmusic #musicproduction #musicproducer #plasmadrive #darkambient #sounddesign #darkmusic
...

263 26

Erica has many modules that I want, but will likely never own. Damn you, Eurocrack addiction! But if there was one module in this massive system I wanted to hear, it's the Eurorack version of the Plasma Drive from Gamechanger Audio. We are all familiar with the sound of tubes, diodes and transistors distorted. But what does a plasma tube do to sound? I've heard stuff online, but not in person. Again, I was out of time and couldn't really spend the time I wanted to with this once the system freed up. All I got was this blurry photo. Sorry... #ericasynths #ericamodular #plasmadrive #gamechangeraudio #synthplex #synthplex2019 ...

14 0

First jam with my ericasynths x gamechanger_audio Plasma Drive distorsion module.
I used a simple VCO sound in this video to start experiment. More to come. It is an amazing module, also tried it in aux send and that was incredible. Also it looks so damn gorgeous⚡️⚡️⚡️ #vlaysin #techno #distortion #ericasynths #modular #modularsynth #plasmadrive #gamechangeraudio #eurorack #electronicmudic #rave #analog #xenon
...

156 13

Just in case if you have missed how the Amen Break sounds through the Plasma Drive. ⚡️🥁⚡️ gamechanger_audio #eurorack #sampledrum #plasmadrive ...

809 30

Today's experimental Jam with Eurorack Boxes. I’m not sure, but I felt like in factory of somewhere on 1960's late ~ 1970’s early. Full Ver. video on my YouTube Channel GBG (http://boxguru.net). And also, you can listen Full Track on link in bio. Enjoy it & Have a warm day, guys!😎🎛🖤
-
흔한 셀카사진 하나 없어도 이런건 열심히 찍고있음✌️(풀버전 정보는 윗줄에...👆)
-
#ericasynths #pico #picodsp #picoseq #plasmadrive #drummachine #makenoise #morphagene #moog #dfam #mother32 #synth #eurorack #modularsynth #techno #deeptechno #ambient #experimental #noise #undergroundtechno #underground #electronic #dance #music #liveset #livejam #ANSR #seoul #gearlounge #ringoshop
...

154 8

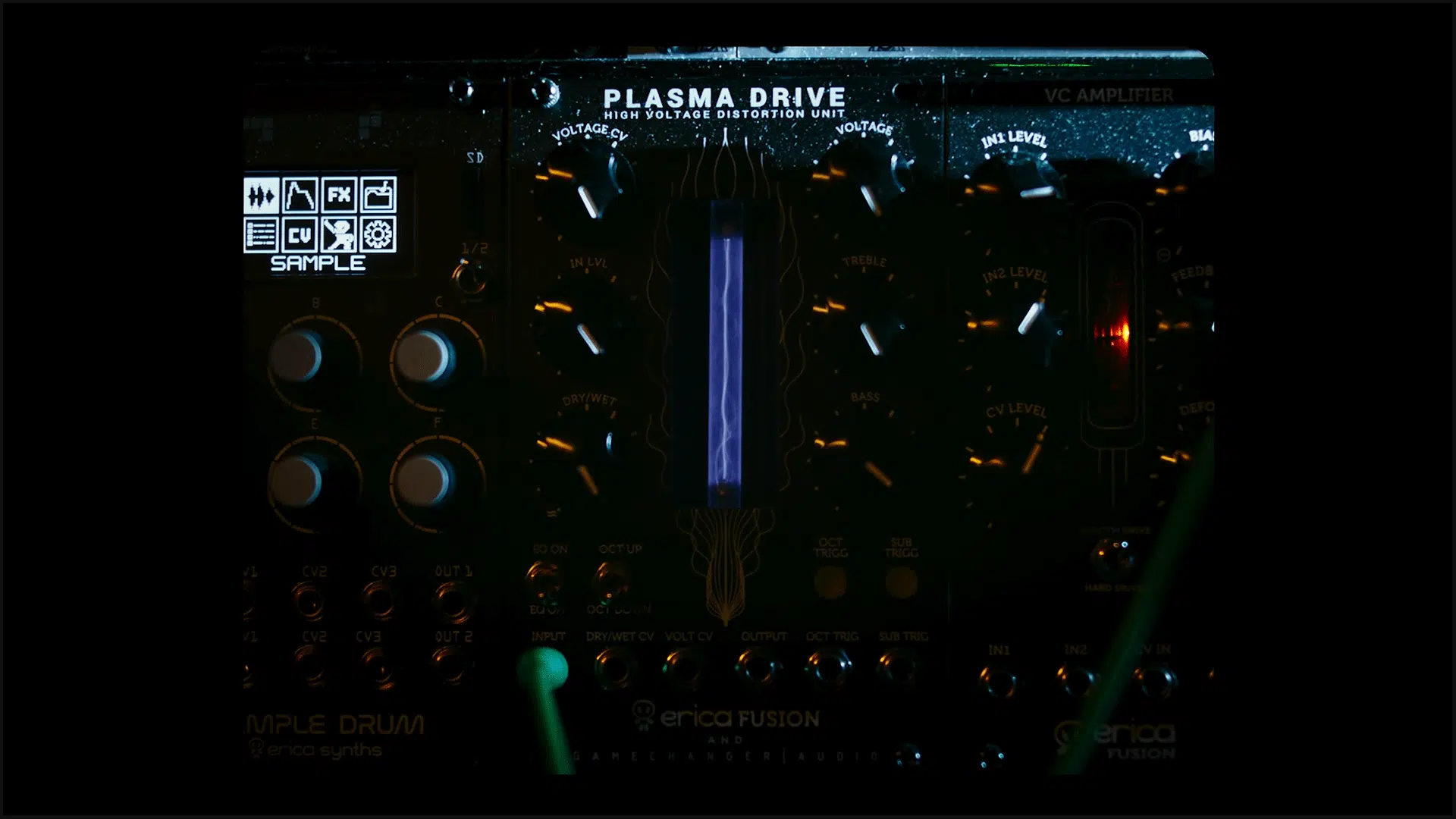

ericasynths - Plasma Drive test shooting via 1000FPS(Super Slow). It shows me amazing visual & sound. Oh, it’s feeling like I’m in Lab. It’s lovely one!😎🎛🖤
-
